The 3-in-1 DC to AC 2000 W Pure Sine Wave inverter Solution to Load Shedding and - Cape Town

Description

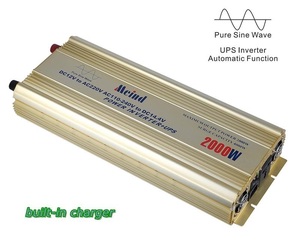

This 2000 W Pure Sine Wave Power Inverter converts 12v DC battery power into clean 220 v AC power. With a peak power of 4000 W and continuous power of 2000 W, this inverter is excellent for sensitive power appliances like computers, air pumps, small motors and fridges that modified sine wave inverters are not suitable for.

Due to its built-in charging and UPS functions (see Specifications), this inverter is a perfect power solution during load shedding and power outages for homes, work sites, on boats, and even in off-grid solar panel systems. This unique product is not only cheaper than a fuel-driven generator (even with a 12 v 150 Ah battery) but is also quiet, portable and easy to use.

When selecting a power inverter, please make sure it has enough power for your appliances that you need to run. Just add together the watts for each item you may want to run at the same time. Keep in mind to also add about 15% to the total wattage to ensure you will have enough power to meet your needs.

Recommended 12 V battery size: 120 Ah or larger. Two 120 Ah batteries at an average inverter output of 500 W will give you about 3.5 hours of continuous power supply before the batteries need to be recharged.

Applications

See application sheet

Specifications

Model: MZ2KU (2000 W) Inverter with Charger and UPS
Output Wave Form: Pure Sine Wave
Brand Name: Meind
Input voltage: DC 12 V (10-14.8 V) / DC 24 V (18-28 V)
Output Voltage: AC 220 V ± 8% / AC 110 V / AC 120 V / AC 240 V ± 8%
Output frequency: 50 HZ
Peak (Surge) power: 4000 W
Continuous power 2000 W
Conversion efficiency: >90.5%
Low Voltage Range: DC 14.8 V / DC 28.5
No Load current: <0.4 A 11. Over Load Protection: >1200 W
Over Heat Protection: >70 Degrees C
High-Voltage Protection: DC 16 V1 V
Low-Voltage Protection: DC 10.5 V0.5 V
Charger Function: “Input: AC 110 V-240 V
Output: DC 13.8 V/DC 27.6 V AMP: 8 A-15 A The Inverter’s alarm will be triggered and stop when the battery is fully charged.
UPS Function: 50 mS Automatic Switch: when main power goes off, the inverter automatically switches to battery AC output and when main power is on again, the inverter automatically switches to the battery charger.
Protection: Fuse: 4*30 A, Cooling Fan, Auto Reboot Function, Soft Switch Function, Reverse Protection / Short Circuit Protection
Product Size: 520 x 260 x 120 mm
Product Weight: 4.32 kg
Carton Size: 54 x 39 x 55.5 cm
1 Year Facory Warranty

Package includes:

1 x Product as Described
2 X Sets of cables
Users’ manual

Also see my other posting about inverters, which will give you a better idea about the usage of these devices.
You are welcome to contact me for any advice or if you have any questions.
Re-sellers welcome.
